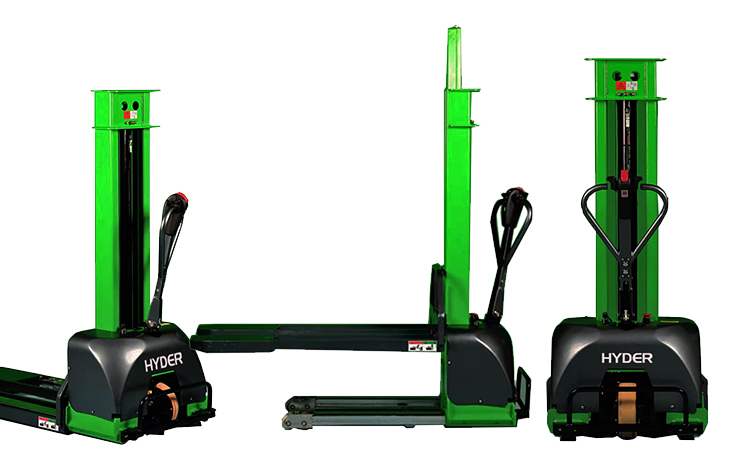

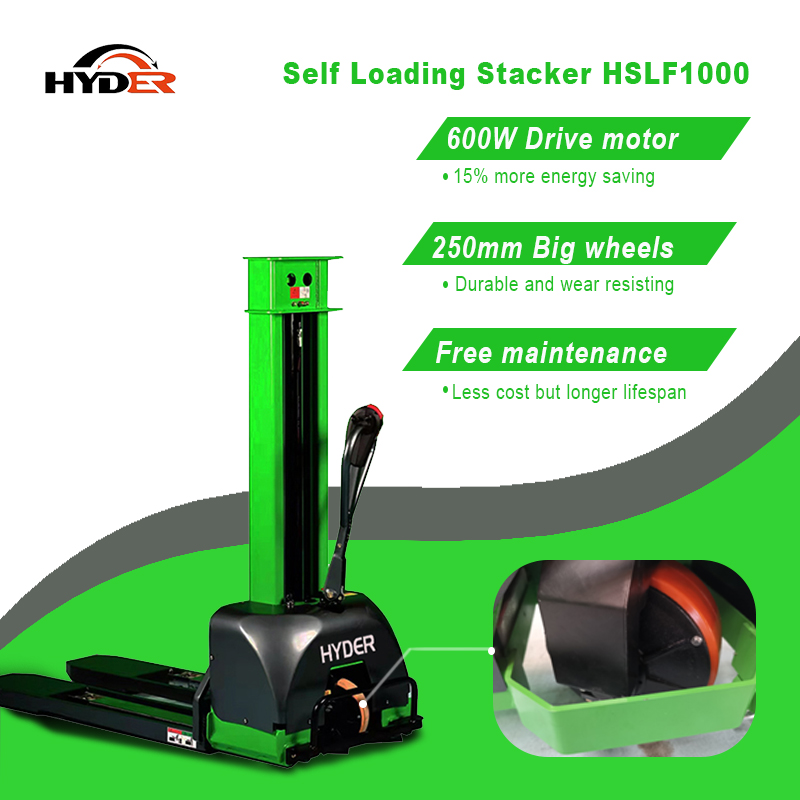

HYDER 1000kgs Full Electric Self Loading Stacker


1. Model : HSLF1000

2. Max load capacity: 1000kg

3.   Lifting height:800mm,1000mm and 1300mm

4. Type of operation: electric in driving and lifting

5. Battery:  48V 15Ah Lithium

6.  Charging time:  5hours

7. Working time : 30times.

Inquiry Now


The HSLF1000 Self Loading Stacker has been designed, developed, and built to give outstanding long service with minimum maintenance required within industry and commerce.  With full-electric design, it would better and more efficient to use.

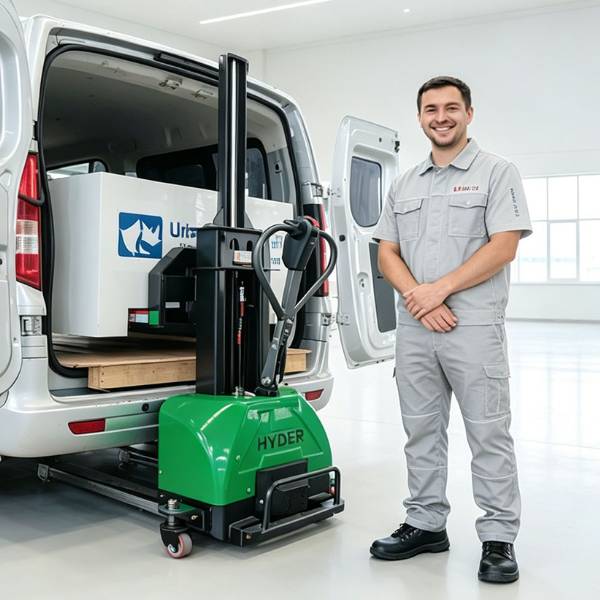

Similar to the semi-electric model, It is easy and quick to transport as can load itself into a van, pick-up, lorry, or trailer (with or without a load on the forks) to eliminate reloading problems at your destination.

The Self Loader also has a high-performance pump unit that provides fast and stable lift together with low noise and can travel with the vehicle to serve different purposes


Why do We suggest Full Electric Self lifting Stacker HSLF1000?


>HSLF1000 helps address Covid-19 related delivery issues by turning a two person job into one and reducing your workforce needs.


> Reduces employee fatigue, workplace injuries, and employee turnover; improves delivery efficiency. Simply control its forward and backward by scrolls. Self propelled machine is more convenient


> Replaces liftgates, ramps, hoists & conventional pallet jacks


> Unlike forklifts, HSLS & HSLF series can go into the delivery truck, protected from the elements


> Battery powered; charges en route or at your facility


> Can be operated by anyone, expanding your potential delivery workforce.  HSLF model is easier for women workers.

1 Standard
1.2 Name   full electric stacker
1. 3 Power unit   battery
1. 4 Operation   walkie
1.5 Load capality Q (kg) 1000
1.6 Load center C (mm) 400
1.7 Fork outside spacing W3 (mm) 685
1.8 Fork length L2 (mm) 1195
2 Tire
2.1 Tire type front/rear PU/Nylon
2.2 Tire no. Driving wheel/Bearing wheel/middle wheel/balanced wheel/ pcs 1/4/2/2
2.3 Driving wheel mm Φ250×74
2.4 Bearing wheel mm φ70×60
2.5 Middle wheel mm Φ65×30
2.6 Balanced wheel mm Φ40×36
3 Dimension
3.1 Lift height H (mm) 800/1000/1300
3.2 Height in Lowerd Position H1 (mm) 1166/1366/1666
3.3 Height in highest Position H2 (mm) 2344/2544/2844
3.4 Fork height above ground H3 (mm) 81
3.5 wheelbase L0 (mm) 974
3.6 Total Length L1 (mm) 1650
3.7 Leg length L3 (mm) 771
3.80 Middle wheels position L4 (mm) 177
3.9 Safe area for hitchhiking L5 (mm) ≤130
3.10 Body thickness L6 (mm) 409
3.11 Total Width W (mm) 658
3.12 Front wheel tread W1 (mm) 518
3.13 Fork width B (mm) 253
3.14 Min. turning radius Wa (mm) 1173
4 Performance
4.1 Max driving speed (Turtle /full load) km/h 0.5/3.0
4.2 Gradeability(full load/unload) % 5/10
5 Electric Configuration
5.1 Drive motor/Lift motor kw DC0.6/DC1.6
5.2 Battery voltage/capacity V/Ah 48/15 Li-ion
6 Weight
6.1 Battery weight kg 8
6.2 Service weight kg 382
