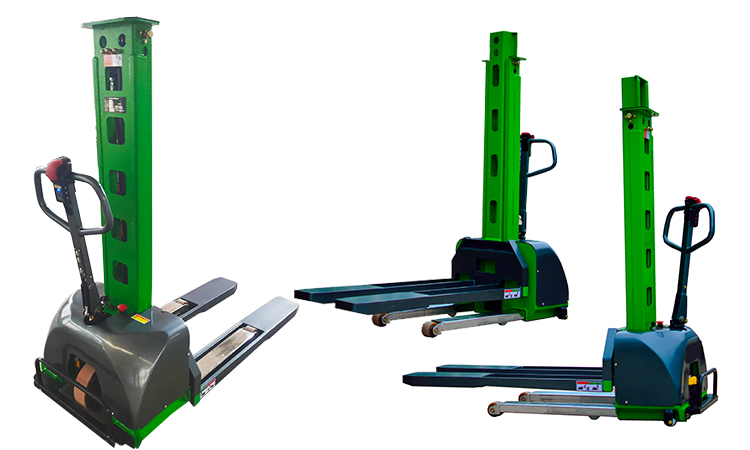

HYDER 500kgs Full electric Self Loading Stacker


1. Model : HSLF500

2. Max load capacity: 500kg

3. Lifting height:800mm, 1000mm and 1300mm

4. Type of operation: electric in driving and lifting

5. Battery:  48V 15Ah Lithium

6. Charging time:  5hours

7. Working time : 50 work cycles(load and unload ) times.

Inquiry Now


The HSLF500 Self Loading Stacker has been designed, developed, and built to give outstanding long service with minimum maintenance required within industry and commerce.  With full-electric design, it would better and more efficient to use.

Similar to the semi-electric model, It is easy and quick to transport as can load itself into a van, pick-up, lorry, or trailer (with or without a load on the forks) to eliminate reloading problems at your destination.

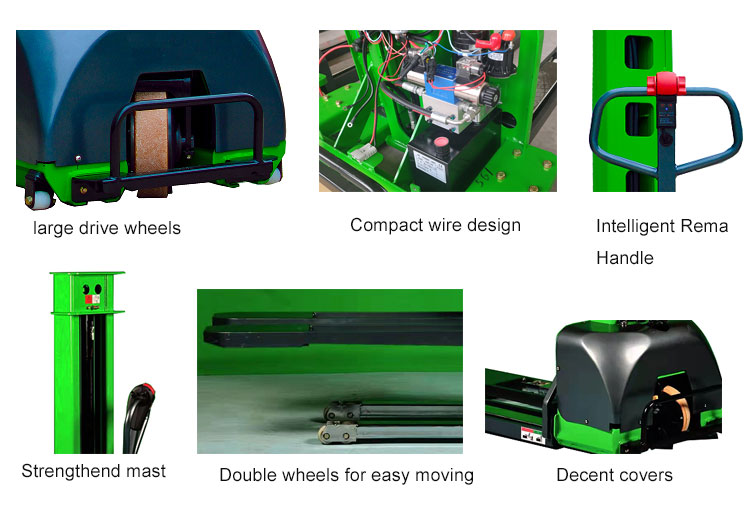

The Self Loader also has a high-performance pump unit that provides fast and stable lift together with low noise and can travel with the vehicle to serve different purposes


Why do We suggest Full Electric Self lifting Stacker HSLF500?


>HSLF500 helps address Covid-19 related delivery issues by turning a two-person job into one and reducing your workforce needs.

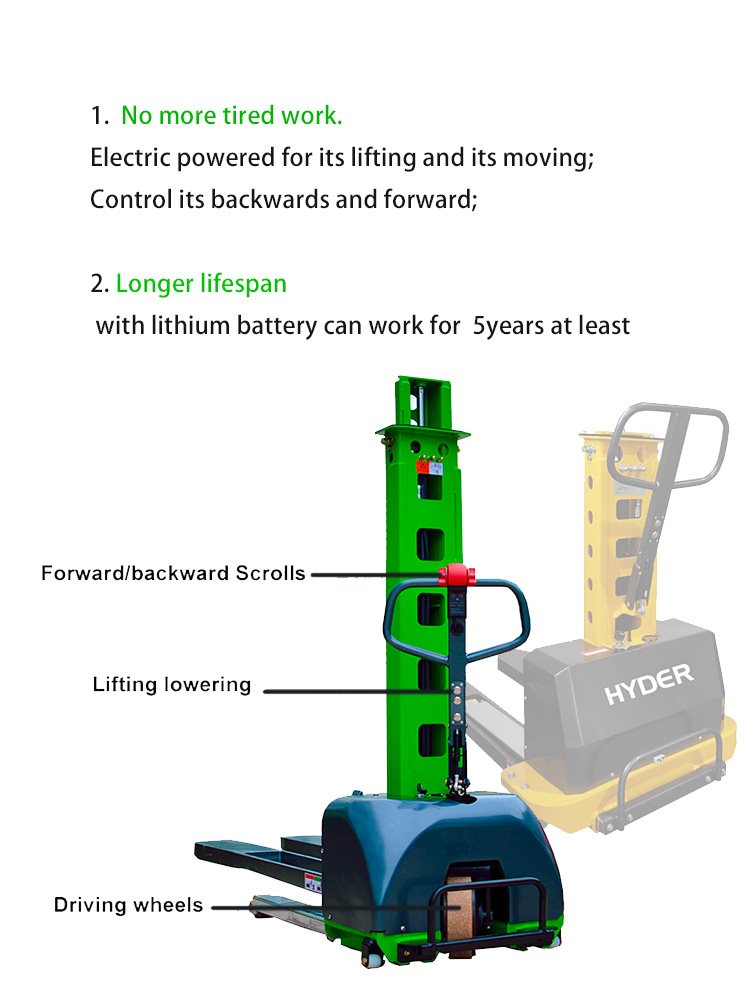

> Reduces employee fatigue, workplace injuries, and employee turnover; improves delivery efficiency. Simply control its forward and backward by scrolls. Self-propelled machine is more convenient


> Replaces liftgates, ramps, hoists & conventional pallet jacks


> Unlike forklifts, HSLS & HSLF series can go into the delivery truck, protected from the elements


> Battery powered; charges en route or at your facility


> Can be operated by anyone, expanding your potential delivery workforce.  HSLF model is easier for women workers.


1 Model - HSLF500
2 Operation - Driving & Lifting Eletric
3 Capacity  Q kgs 500
4 Capacity Center C mm 400
5 wheelbase L0  mm 960
6 Front wheel distance W1 (mm) 409/529
8 Rear wheel distance W2 (mm) 600
9 Min. turning radius Wa   mm 1147
10 Operate type    Walkie
11 wheel nb pc 1/2/2
12 Front wheel size mm φ80×60
13 Universal wheel size mm φ40×36
14 Middle wheels size mm Φ65x30
15 Universal wheel size mm Φ250x70
16 Middle wheels position L4  mm 150
17 Length of Outriggers L3  mm 750
19 Lift Height H  mm 800/1000/1300
20 Fork outside spacing W3  mm 565/685
21 Fork Length L2  mm 1295/1195
22 Thickness of Fork B1 mm 60
23 Fork width B2 mm 195
24 Total Length L1  mm 1676
25 Total Width  W  mm 658
26 Height in Lowerd Position H1  mm 1107/1307/1607
27 Height in highest Position H2  mm 1870/2270/2870
28 Fork height above ground  H3  mm 81
29 Lifting speed mm/s 55
30 Descent speed mm/s 100
31 Motor Power Lifting Kw DC 0.8
32 Motor Power driving Kw DC 0.6
33 Max driving speed (Turtle /full load) km/h 1/3.5
34 Gradeability(full load/unload) % 5/10
35 Material of Wheels - Polyurethane/Nylon
36 Brake Type - Mechanical
37 Battery Voltage/Nominal Capacity  V/Ah 48/15 lithium&Charger
38 Battery weight kgs 5
39 Charger Battery - YES
40 Weight kgs 294/302/315
